Both
Construction Hoist
USD 25000٫00
/ set
السعر يتفاوت حسب الكمية والمواصفات
| الكمية الدنيا | 1 set |
| المخزون | 0 set |
| الفئة | Construction |
ضمان تجاري
التسليم في الوقت المحدد
العينة متاحة
مورد معتمد
19
سنوات
98%
نسبة الاستجابة
24h
وقت الرد
المزيد من هذا المورد
وصف المنتج

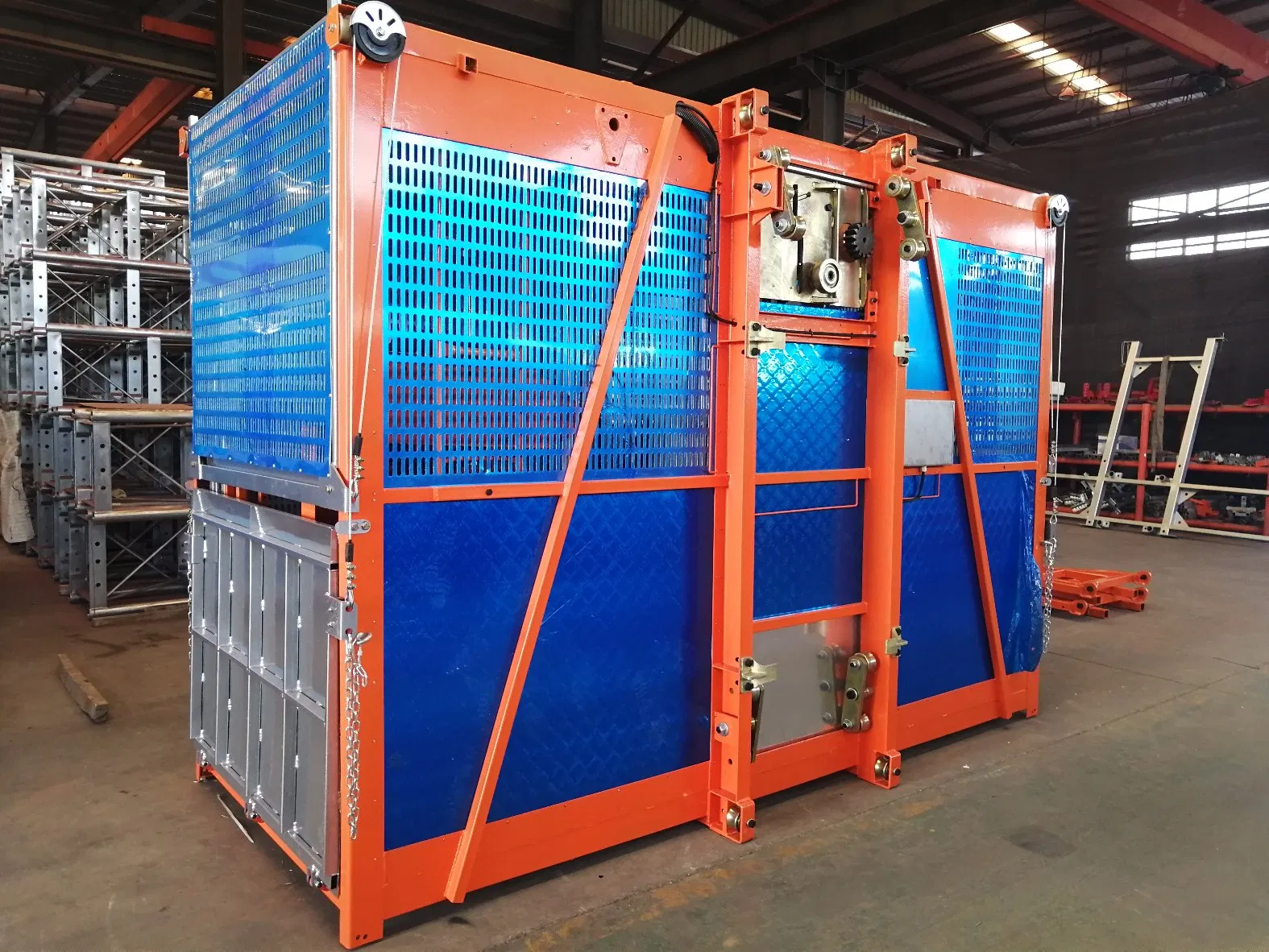

This construction hoist is a rack and pinion lifting platform designed for heavy-duty building applications. It offers load capacities from 1 to 2 tons, speeds up to 40 m/min, and a maximum erection height of 250 meters. Available in single or double cage configurations with optional operation cabin, it is powered by an electric motor and certified with ISO and CE standards.
المواصفات التقنية
| Model NO. | SC100/100; SC150/150; SC200/200 |
| Type | Lifting Platform |
| Load Capacity | 1T - 2T |
| Speed | 20M/Min - 40M/Min |
| Usage | Construction Hoist |
| Sling Type | Cable |
| Lift Drive / Actuation | Electric Motor |
| Lift Mechanism | Rack and Pinion |
| Attendant | With Attendant |
| Deceleration Device | With Deceleration Device |
| Elevator Door | Straight Fractional Door |
| Cage | Double Cage(with Operation Cabin or No Cabin) |
| Cage Dimension | 3*1.5*2.2m, 3*1.3*2.2m, 3.2*1.5*2.2m(Changeable ) |
| Rated Lifting Speed | 36m/Min, 0-40m/Nin, 0-60m/Min |
| Max Erection Height | 250m |

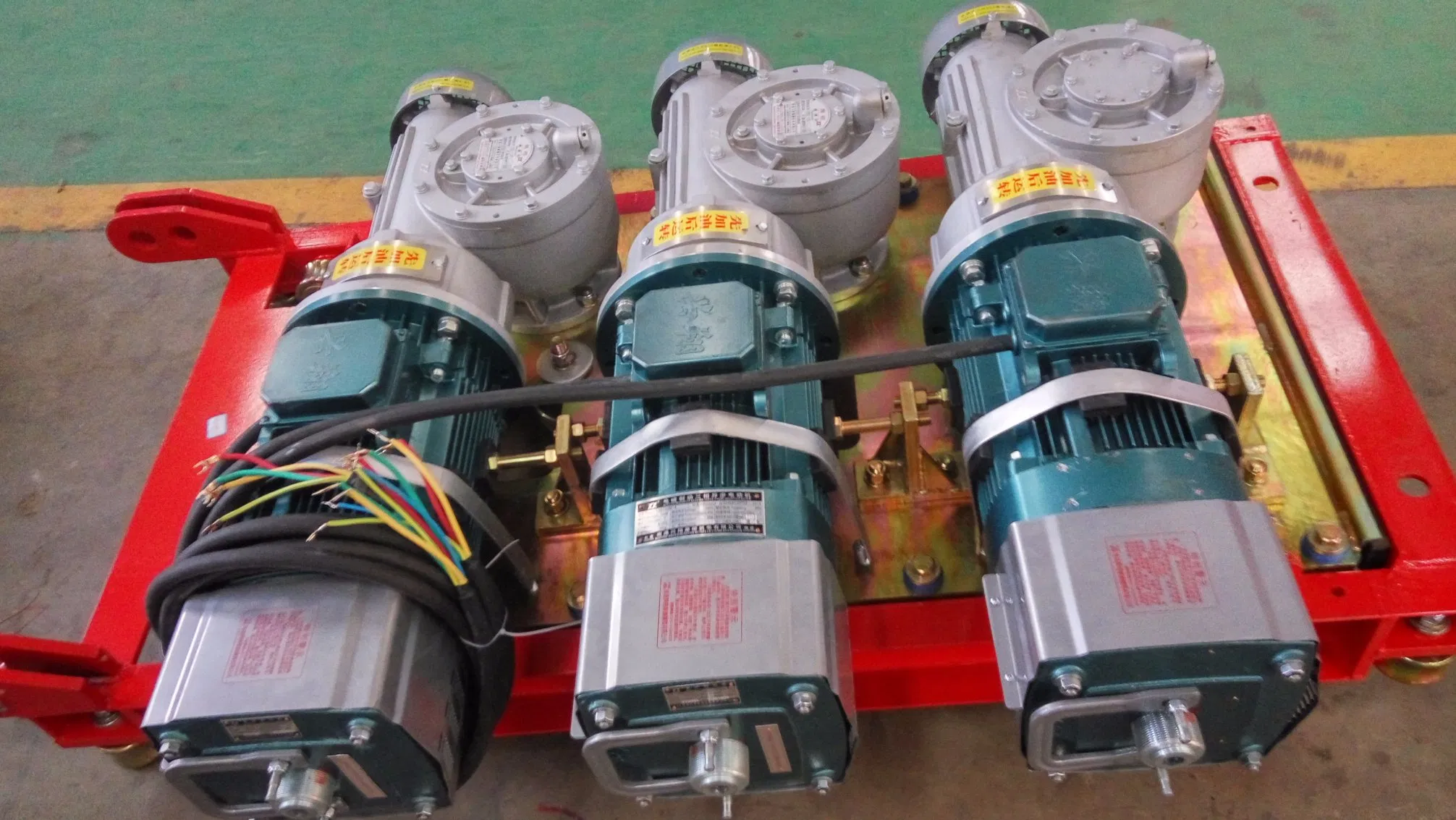

| Motor Power | 2X13kw Per Cage |
| Mast Section Size | 650X650X1508mm (or 800X800X1508mm) |
| Mast Section Weight | 145-180kg (Double Racks) |
| Wall-Tie Adjust Length&Qty | 2.8-3.2m 1pieces/5 Mast (Can Be Adjusted) |
| Main Electrical System | Schneider(Can Be Equipped with PLC Fault Sensor ) |
| Voltage/Frequency | 380V-50Hz 3 Phase or Can Be Changed |
| Application | Construction Usage |
| Tower Crane Type | Construction Hoist |
| Power Source | 380V/50Hz, 440/60Hz, 220V/60Hz, 3phase |
| Certification | ISO9001: 2000, Ce |
| Transport Package | Container Shipment in Nude |
| Specification | ISO, CE, EAC |
| Trademark | XINGDOU |
| Origin | Shandong China |
| HS Code | 84281090 |
